FROGBRO Quick heating Cordless Soldering Iron with Rechargeable Lithium-Ion Battery

Message

$8.62

Have chosenThere are no options selected.

*Max Operating Temp
*Power Source
*Wattage
*Tip Type
Start To Order

Add To Cart Successfully!

SEND INQUIRY
FROGBRO Quick heating Cordless  Soldering Iron with Rechargeable Lithium-Ion Battery
FROGBRO Quick heating Cordless  Soldering Iron with Rechargeable Lithium-Ion Battery
FROGBRO Quick heating Cordless  Soldering Iron with Rechargeable Lithium-Ion Battery
FROGBRO Quick heating Cordless  Soldering Iron with Rechargeable Lithium-Ion Battery
FROGBRO Quick heating Cordless  Soldering Iron with Rechargeable Lithium-Ion Battery
FROGBRO Quick heating Cordless  Soldering Iron with Rechargeable Lithium-Ion Battery
FROGBRO Quick heating Cordless  Soldering Iron with Rechargeable Lithium-Ion Battery

FROGBRO Quick heating Cordless Soldering Iron with Rechargeable Lithium-Ion Battery

  • Item No.LD006A
    MOQ100 Piece
  • Product size23 x 8 x 5.5 cm
    Product weight0.5 kg
Tag  wholesale

Available Options

Max Operating Temp
Power Source
Wattage
Tip Type
Customization:

3d-iconOnline customization Customise Now

Customized logo (Min. Order: 100 Piece)

Customized packaging (Min. Order: 100 Piece)

Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $8.628.07 / Piece
$862.00
You save $ -862.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Applicable Industries Soldering
Warranty 1 YEAR
Place of Origin CN;ZHE
Product name Wireless Cordless Soldering Iron with Rechargeable Lithium-Ion Battery
Brand Name FROGBRO
Including USB cable, one tip, 2 solder wire, one stand, one sponge,user manual
Application Circuit Board Welding
Model Number LD006A
Lithium battery 3.7V 1800 mAH
Temperature range 200-480 degree
CertificationGS
Power8W
Customized support OEM
Feature Wireless Rechargeable
Handpiece Style Pencil Grip
Package Color box
Heat-up Time 7S

Packaging & Delivery

Selling Units:
Piece
Single package size:
23 x 8 x 5.5 cm
Single gross weight:
0.5 kg
Product Overview




Cordless Soldering Iron with Rechargeable Lithium-Ion Battery

FEATURES AT A GLANCE

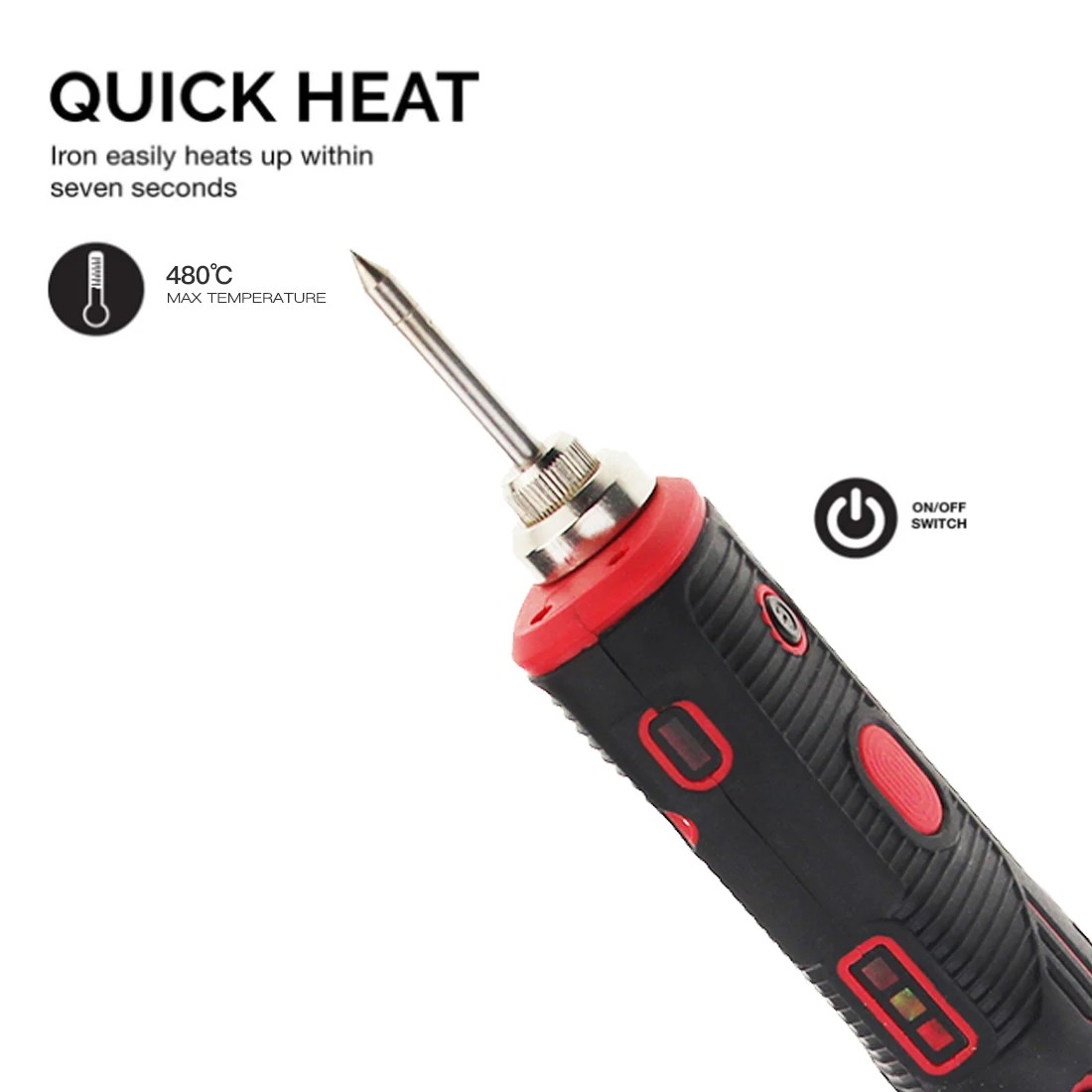

1. Model number: LD006A2. Temperature range: 200-480 degree3. Heating time: 7 seconds4. Power: 8W5. Including: USB cable, one tip, 2 solder wire, one stand, user manual6. Package: color box


Technical parameter:

1. Lithium battery: 3.7V 1800 mAH2. Power equipment: 5V3. Charging limit current 1.6A (full charge takes 1.5 to 2 hours)4. When the charging voltage is higher than 6V, it will stop charging, and the power indicator flashes red.5. Battery level indicator:Red indicator light: 30% power;Green indicator light 1 is on: 60% power;Green indicator light 2 is on: 100% power;6. During charging, the corresponding indicator light flashes. After the battery is fully charged, all three indicators are always on.7. When the battery voltage is lower than 3V, the battery will be charged with a small current and the red indicator light will flash.8. When the battery voltage is lower than 3V, it needs to be recharged.9. The product does not work when charging

Key Function:

1. The touch function needs to be activated for the first time. Press the power button 3 times continuously, the work indicator flashes red, and the touch function is turned on.2. Touch reset function:Press the power button six times continuously, the green light of the work indicator flashes, and the reset of the touch function is completed. Touch reset is a function to readjust the environment when the touch fails due to external interference (when touching to open or reset, do not put your finger on the touch button, otherwise it will not work)3. Turn off the touch function:Press the power button 8 times in succession. When the indicator light on the work indicator is red, the touch function will be turned off.4. Power on, press and hold the power button for 3 seconds to turn on the power indicatorTurn off the power, press and hold the power button for 0.3 seconds to turn off the power indicatorWhen not in use, the lithium battery will automatically turn off after 120 seconds

Working indicator:

1. During operation, when the soldering iron tip is short-circuited or there is no output, the red indicator light will flash.2. Heating process: First, after 12 seconds, the red light is on, the red light is off, and the green light is on, the user can operate.3. It will stop working when the voltage is lower than 2.8V.4. When there is no operation, the self-discharge is lower than 25uA

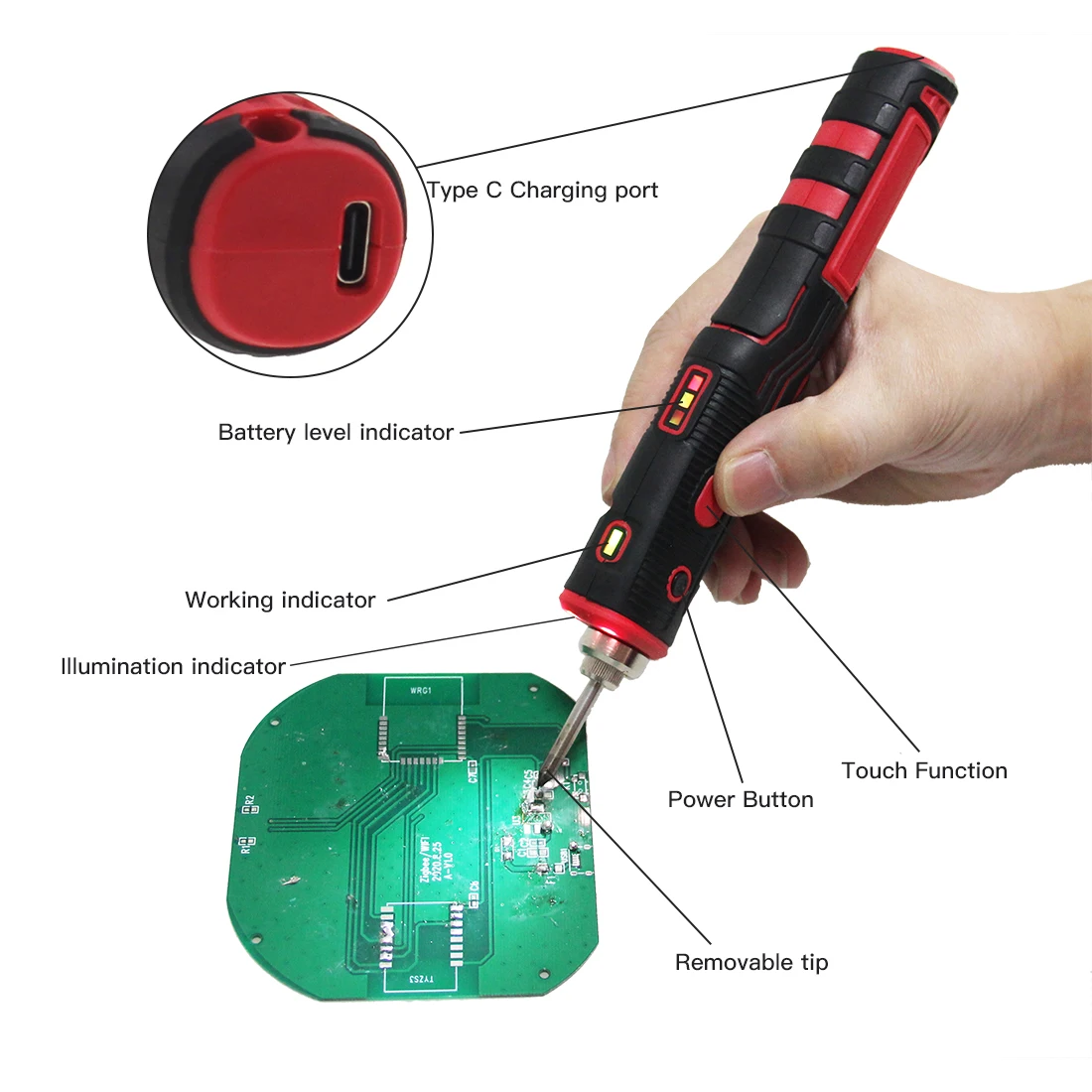

LED Illumination indicator
Type C Charging port
Working indicator
