WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter

Message

$13.50

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

SEND INQUIRY
WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter
WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter
WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter
WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter
WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter
WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter
WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter

WH5000A Large LCD with a bule backlight automatic range function Digital Multimeter

  • Item No.WH5000A
    MOQ500 Piece
  • Product size19 x 8.1 x 4.8 cm
    Product weight0.8 kg
Tag  wholesale
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $13.5012.5012.00 / Piece
$6,750.00
You save $ -6,750.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Max Display 5999
Place of Origin CN;ZHE
Product name Digital multimeter
Brand Name FRANKEVER
LCD size 64x42mm
Model Number WH5000A
Dimensions188x81x48mm
Low battery indication yes
Overload protection yes
Diode Test yes
Transistor Test yes
Data hold yes
Power supply one 9V 6F22 battery
Measuring Current Range 600u-6000u-60m-600m-10A
Auto range yes
Measuring Voltage Range 60m-600m-6-60-600V
Measuring Resistance Range 600-6K-60K-600K-6M-60MΩ
Measuring Capacitance Range 60n-600n-6u-60u-600u-20m/60mF

Packaging & Delivery

Selling Units:
Piece
Single package size:
19 x 8.1 x 4.8 cm
Single gross weight:
0.8 kg
Product Description
Characteristic
All round observation Large LCD
Easy to read in dark condition with blue backlight
Data hold function for easy reading after measurement
With MAX and MIN value display
Double fuse and anti-burn design, safe and reliable
With frequency and temperature test function
With PVC shockproof holster
Can measure high current with clamp meter
with 2mF capacitance test
A magnetic button hook is convenient to adsorb on the surface of the iron object.
Technology features
DCV: 60m-600m-6-60-600V ±0.5%
ACV: 60m-600m-6-60-600V ±1.0%
DCA: 600u-6000u-60m-600m-10A ±1.8%
ACA: 600u-6000u-60m-600m-10A ±2.0%
Resistance: 600-6K-60K-600K-6M-60MΩ ±1.0%
Capacitance:60n-600n-6u-60u-600u-20m/60mF ±5.0%
Frequency: 9.99~9.99MHz ±3.0%
Temperature: -20ºC~1000ºC/-4ºF~1832ºF ±2.0%
Duty cycle: 0.1%~99.9% ±0.1%
DCA(with extra clamp meter WH3302 or 3303):0A-600A ±1.5%
ACA(with extra clamp meter WH3302 or 3303):0A-600A ±1.5%

Details images
Related Products

DT33D

DT9205A

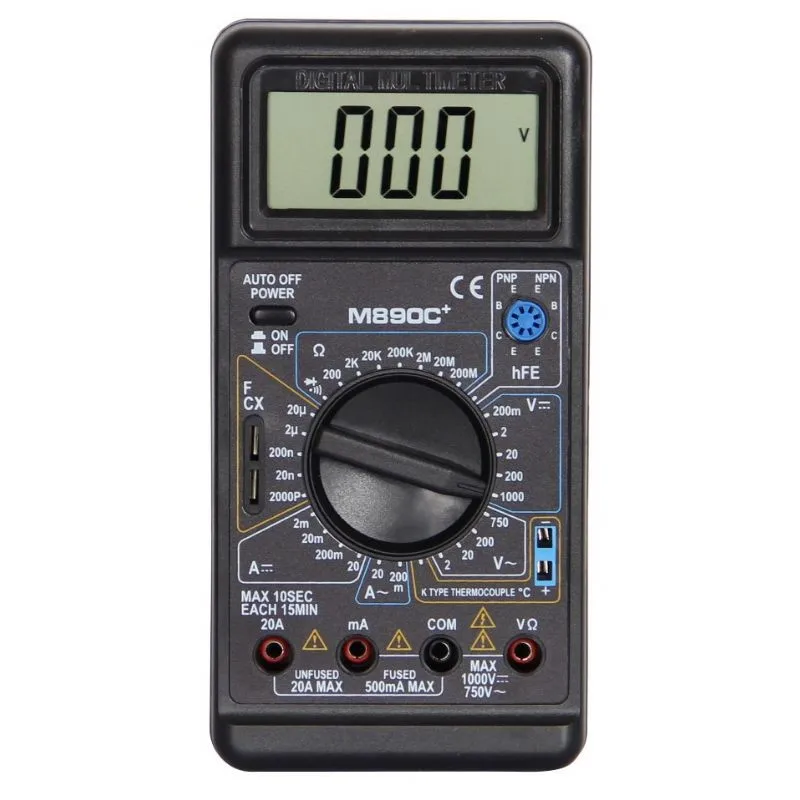

M890C+


Packing & Delivery
Packaging
Carton size
44x32x36CM
G.W./N.W.
15/14 KG
Packing quantity
20 PCS/CTN
Packing
color box
